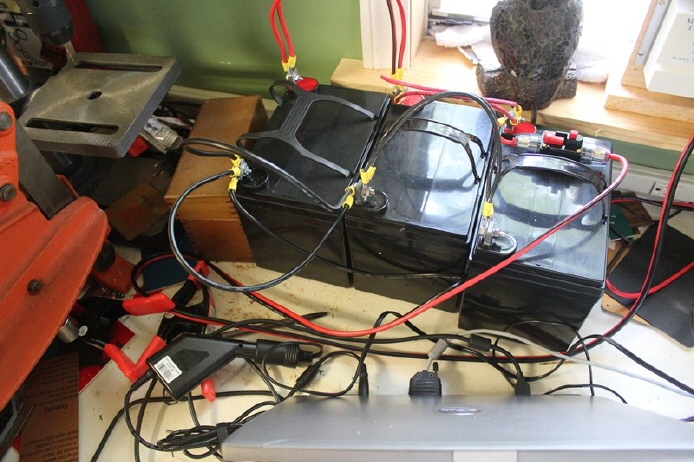

The 3 35aH deep cycle, sealed, AGM batteries are connected in parallel with a 20A circit breaker inline right at the positive terminal. The batteries are then connected to the charge controller. The charge controller directs power generated by the solar panels to charge the batteries and also delivers power to the load from them.
